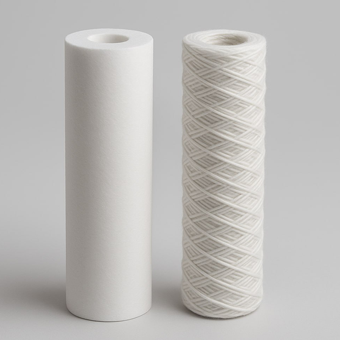

MICROPOLY-MBD spun bond Depth filter Cartridges are made of 100% polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality. With true graded density construction these cartridges have the highest dirt holding capacity possible. Melt blowing (MB) is a process for producing fibrous webs.

MICROPOLY-TBD filter cartridges are manufactured using a unique technology using thermally bonded component fibers resulting in a rigid complex filter matrix. The patented construction of this filter cartridge provides consistent filtration and eliminates pore size variability and media migration.

MICROPOLY-PWD Filter Cartridges are made from high quality, FDA compliant polypropylene filter media, wound to precision requirements. They can hold more contaminants resulting in fewer filter changes.

MICROREBO-RBD cartridge has been developed by ‘intrinsically bonding cellulose fibers’ together with a pure resin. By cross-linking cellulose and resin, a filter of great strength has been developed that can be used with most liquids and chemicals.

MATERIAL OF CONSTRUCTION

Filter MediumPolypropylene | Polyester | Acrylic-Phenolic | Cellulose-Melamine
O ring/GasketSilicon/EPR/Viton

CARTRIDGE DIMENSIONS (NOMINAL)

Outer Diameter63mm (2.5”)
Inner Diameter28mm (1.10”)
Length2.5”, 05”, 10”, 20”, 30”, 40”
Effective filtration area (10" cartridge)0.20m2

MICRON RATINGg(µ)*

Micron Rating(µ)1, 5, 10, 20, 30, 40, 50

OPERATING CONDITION

Temperature(Nominal)Up to 500C/1220F
Temperature(Max)*800C/1760F at ΔP≤1.0 bar(14.5 psi)
Pressure for Normal Flow Direction4.0bar(58psi) at 250C(770F)
Pressure for Reverse Flow Direction2.0 bar (29psi) at 250C(770F)
pH value1-13
  • Thermally bonded
  • Rigid filter matrix
  • Stable porosity matrix & No media migration
  • Consistent & Precise filtration
  • High dirt holding
  • Wound filter media
  • Broad chemical compatibility
  • High temperature resistant
  • Filtration of alcoholic & non alcoholic beverages includes, Wine, beer, mineral water, Juice, pure water.
  • Prefiltration & Clarification of various solutions, Biologicals, Water.
  • Used in filtration of organic solvent, Ink, Petroleum.
