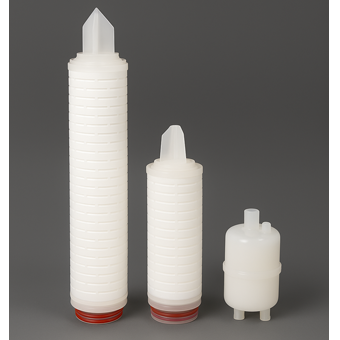

MICROPES filters are absolute-rated polyethersulfone membrane PES filters designed to provide increased bacteria, virus and particle removal at high flow rates, with extremely low pressure drops. All parts are sealed by hot welding technology without any chemical binder.

MICROPES combine the benefit of both a pre-filter and final filter in one device to provide reliable and consistent performance. MICROPES cartridges incorporate an asymmetric polyethersulfone membrane that delivers high level of filtration performance, stability and service life in demanding process conditions. The PES membrane is permanently hydrophilic, with broad chemical compatibility and extremely low extractable levels in a wide range of fluids and applications.

MATERIAL OF CONSTRUCTION

Filter MediumPolyether sulphone
Support layerPolypropylene
Core/Cage/End CapsReinforced Polypropylene
O ring/GasketSilicon/EPR/PTFE/Viton

CARTRIDGE DIMENSIONS (NOMINAL)

Outer Diameter69mm (2.75”)
Inner Diameter33mm (1.30”)
Length2.5”, 05”, 10”, 20”, 30”, 40”
Effective filtration area (10" cartridge)0.65 m2

MICRON RATINGg(µ)*

Micron Rating(µ)0.10, 0.20, 2.5, 0.45, 0.5, 0.65, 1.00

OPERATING CONDITION

Temperature(Nominal)Up to 600C/1400F
Temperature(Max)850C/1850F at ΔP≤1.0 bar(14.5 psi)
Pressure for Normal Flow Direction4.2bar(60.91) at 250C(770F)
Pressure for Reverse Flow Directions2.1 bar (30.5psi) at 250C(770F)
pH value2-13
Sterilization Steam sterilization for 30 minutes at 121 + 2 0C for multiple cycles
Hot water sterilization for 30 minutes at 850C for multiple cycles

FEATURES AND BENEFITS

  • Polyethersulphone & polypropylene components, provides extremely wide chemical compatibility & permits in a broad range of fluids & application.
  • Unique serial numbers engraved are given on each filter for identification & traceability.
  • Low protein binding, suit for a broad range of pharmaceutical products.
  • Asymmetric membrane provides high dirt holding capacity.
  • Allows retrofit in various filter vessels design.
  • Repeatate steam sterilizable.

APPLICATIONS

  • Antiseptic filtration in Pharmaceutical i.e. API, LPV, blood serum, Biologicals, buffers and others
  • Antiseptic filtration for food & beverage industry (beer ,wine ,mineral water etc)
  • Water filtration for silicon crystal manufacturing
  • Large volume infusion drugs & Fine chemicals, water process
  • Biological products filtration
  • Ultra purification filtration for electronic industry.
