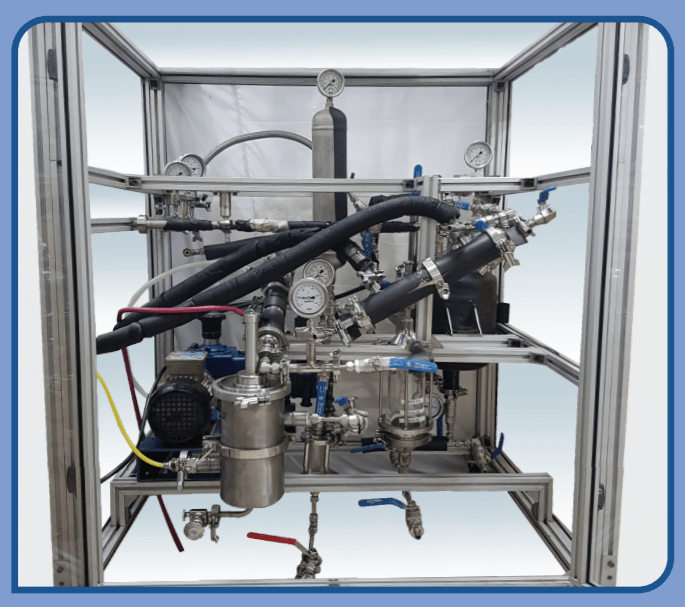

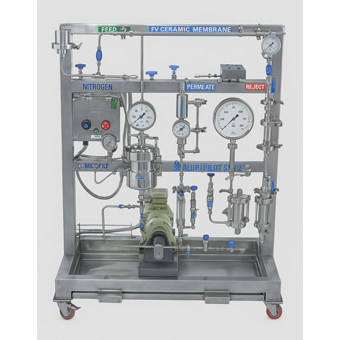

The Lab test unit operates in batch and crossflow mode. It can operate in either pervaporation (PV) or vapor permeation (VP) mode. The system is suitable for testing flat-sheet, hollow fiber & tubular membranes.
The unit consists of:
- Jacketed feed tank volume of 3 L
- Feed temperature & pressure gauge
- Retentate condensor
- Retentate temperature & pressure gauge
- Permeate vacuum gauge
- Permeate Condensor
- Pump for liquid return
- Condensate collection port
- Liquid nitrogen vacuum cold trap
- Overall system hold up volume of 4 L
- Polycarbonate enclosures with cut-outs for utility tubings & elephant suction hood
Mechanical Design Specifications:
- Operating Pressure – 1-3 barg
- Design Pressure – 5 barg
- Operating Temperature – 90-110 °C
- Design Temperature – 150 °C
Client Scope:
- Recirculating heating bath
- Recirculating Chiller
- Heating Pump
