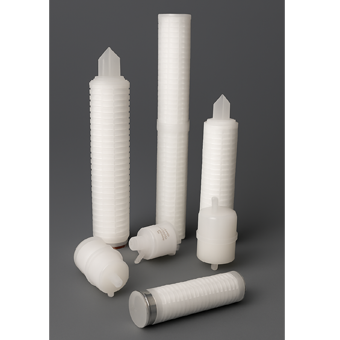

MICROPVDF pleated cartridge filters are made of polyvinylidene fluoride (PVDF) and are characterized by low protein binding, low extractable levels, wide chemical compatibility and chemical inertness. The pleat technology maximizes the useful surface area of the filter while maintaining proper flow paths between media pleats. Adaptors are thermally welded with media without using any adhesives on it, ensuring seamless fusion.
MATERIAL OF CONSTRUCTION
| Filter Medium | PVDF Membrane |
| Support layer | Polypropylene |
| Core/Cage/End Caps | Reinforced Polypropylene |
| O ring/Gasket | Silicon/EPR/PTFE/Viton |
CARTRIDGE DIMENSIONS (NOMINAL)
| Outer Diameter | 69mm (2.75”) |
| Inner Diameter | 33mm (1.30”) |
| Length | 2.5”, 05”, 10”, 20”, 30”, 40” |
| Effective filtration area (10" cartridge) | 0.65 m2 |
MICRON RATINGg(µ)*
| Micron Rating(µ) | 0.20, 0.45, 0.80, 1.0 |
CARTRIDGE SAFETY
| Endotoxin | < 0.25 EU/ml |
| Extractable | 0.03 g/10" |
OPERATING CONDITION
| Temperature(Nominal) | Up to 650C/1490F |
| Temperature(Max) | 900C/1940F at ΔP≤1.0 bar(14.5 psi) |
| Pressure for Normal Flow Direction | 4.2bar(60.91) at 250C(770F) |
| Pressure for Reverse Flow Directions | 2.1 bar (30.5psi) at 250C(770F) |
| pH value | 1-13 |
| Sterilization | Steam sterilization for 30 minutes at 121 + 2 0C |
- Low protein adsorption
- Biologically inert and Non toxic
- High pleated area, robust membrane construction
- Fixed pore structure, consistent particle removal
- Natural hydrophobic
- Excellent temperature resistant
- Wide chemical compatibility.
- Sterile filtration in Pharmaceutical i.e. API, LPV, blood serum, Biologicals, buffers and others
- Filtration of Solvent contains halogens
- For high viscosity liquid filtration
- Filtration in strong alkaline, acidic and oxidizing environment.
